Shotgun Hierarchy Model¶

Introduction¶

The shotgun hierarchy data model helps you build responsive, data rich applications quickly, leveraging Qt’s built-in model/view framework to represent your production hierarchy.

The Shotgun Hierarchy Model is a custom Qt Model specialized to represent your Shotgun production hierarchy as defined in your site’s Tracking Settings. The hierarchy represented by the model is dynamically constructed based on a seed_entity_field which represents the target of the hierarchy (i.e. what you’re trying to drill down to in view using the model).

Like the ShotgunModel, the ShotgunHierarchyModel uses a disk based cache and runs queries asynchronously to Shotgun in the background for performance. You derive your own model class from it, set up a query, and then hook up your model to a Qt View which will draw the data. The class contains several callbacks and allows for extensive customization, yet tries to shadow and encapsulate a lot of the details.

Why should I use the Shotgun Hierarchy Model?¶

Using the Shotgun Hierarchy Model means switching to Model/View based programming. While there is perhaps slightly more overhead to get started with this, there are many benefits. The Shotgun Hierarchy Model (and the corresponding delegates and Shotgun View components) is an attempt to bridge this gap and make it quick and painless to get started with Qt Model/View programming.

Qt provides a strong and mature Model/View hierarchy which is robust and easy to work with. If you are not familiar with it, please check the following links:

Tutorial: http://qt-project.org/doc/qt-4.8/modelview.html
Technical details: http://qt-project.org/doc/qt-4.8/model-view-programming.html

The benefits with this approach will become evident as you scale your UIs and their complexity. Developing code and tools where the data and the UI is combined will work in simple scenarios but for data rich applications this approach becomes hard to maintain, difficult to reuse and typically scales poorly as the dataset complexity grows. By leveraging Qt’s built-in functionality, you get access to a mature and well documented toolbox that makes it quick to develop tools:

A hierarchy model instance represents a single Shotgun nav_expand() query. The model is lazy-loaded as each time you expand an item in the view, the children of that item are queried.
The model is cached, meaning that all data is fetched in the background in worker threads. This means that the data in your UI will load up instantly and you never have to wait for Shotgun. If the query result is different than the cached result, the view will be updated on the fly as the data arrives.
With Qt you have access to selection models, making it easy to create consistent selection behavior, even across multiple views, with full keyboard support.
With Qt proxy models you can easily create interactive searching and filtering on the client side.
Views and models are optimized and will perform nicely even if you have thousands of items loaded.
With an attached view, you can easily control the Qt delegates system, making it easy to draw custom UIs for each item.

Shotgun Hierarchy Model Hello World¶

A hello world style example would look something like this, assuming this code is inside a toolkit app:

# import the shotgun model module from shotgunutils framework
shotgun_model = sgtk.platform.import_framework(
    "tk-framework-shotgunutils", "shotgun_model")

# Create a standard Qt Tree View
view = QtGui.QTreeView(parent_widget)

# Set up our data backend
model = shotgun_model.SimpleShotgunHierarchyModel(parent_widget)

# Tell the view to pull data from the model
view.setModel(self._hierarchy_model)

# build a hierarchy that encompases all your projects
# targeting entities linked to the "entity" field on "Version" entities
model.load_data("Version.entity")

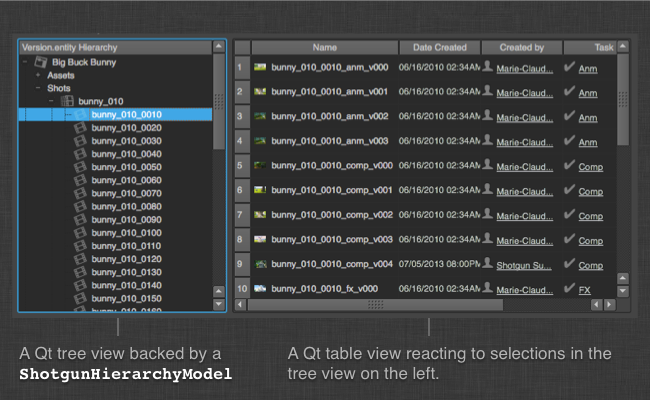

The above code will create a standard Qt tree view for your site (all projects) drilling down to entities with linked versions.

Beyond Hello World¶

The simple setup outlined above could be extended in the following ways:

If you need more control of how the data is being retrieved, consider instead creating your own class and derive from ShotgunHierarchyModel. This makes it possible to customize the data as it arrives from Shotgun and how it will be displayed by the view.
If you want to retrieve results from your view, connect signals to the view’s selection model. The items in the view hold all the information you need to query all the target entities under that level of the hierarchy. For example, an item that represents a Sequence entity in a view stores all the required information for querying target entities for all of its Shots.
If you want to cull out items from the model, for example only to show items matching a particular search criteria, use a Proxy Model (typically QSortFilterProxyModel).
If you want to control the way items are displayed in the view, consider using the Shotgun delegates module which is part of the Qt widgets framework. For more information, see WidgetDelegate

SimpleShotgunHierarchyModel¶

Convenience wrapper around the Shotgun Hierarchy Model for quick and easy access. Use this when you want to prototype data modeling or if your are looking for a simple hierarchy without any customization. All you need to do is to instantiate the class (typically once, in your constructor) and then call SimpleShotgunHierarchyModel.load_data() to specify the type of hierarchy to build in the model. Subsequently, call load_data() whenever you wish to change the hierarchy represented by the model.

This class derives from ShotgunHierarchyModel so all the customization methods available in the normal ShotgunModel can also be subclassed from this class.

ShotgunHierarchyModel¶

A Qt Model representing a Shotgun query.

This class implements a standard QAbstractItemModel specialized to hold the contents of a particular shotgun API nav_expand() query. It is cached and refreshes its data asynchronously.
